Calculating resistors for a 20-switch matrix

I used the technique described in Calculating a resistor network to work out a set of resistors for a 20-key matrix. Here's the program modified for this circuit:

(defparameter e6
  '(100 150 220 330 470 680 1000 10 15 22 33 47 68))

(defun matrix (e6)
  (let ((bestmin 0)
    (flet ((pushvalue (value)
             (push (truncate (* 1024 value)) values)))
      (dolist (a e6)
        (dolist (b e6)
          (format t "--- ~a ~a~%" a b)
          (dolist (c e6)
            (dolist (d e6)
              (dolist (e e6)
                (dolist (f e6)
                  (dolist (g e6)
                    (dolist (h e6)
                      (setq values nil)
                      (pushvalue (/ (+ b c d e f g h) (+ a b c d e f g h)))
                      (pushvalue (/ (+ b c d f g h) (+ a b c d f g h)))
                      (pushvalue (/ (+ b c f g h) (+ a b c f g h)))
                      (pushvalue (/ (+ b f g h) (+ a b f g h)))
                      (pushvalue (/ (+ f g h) (+ a f g h)))
                      (pushvalue (/ (+ b c d e g h) (+ a b c d e g h)))
                      (pushvalue (/ (+ b c d g h) (+ a b c d g h)))
                      (pushvalue (/ (+ b c g h) (+ a b c g h)))
                      (pushvalue (/ (+ b g h) (+ a b g h)))
                      (pushvalue (/ (+ g h) (+ a g h)))
                      (pushvalue (/ (+ b c d e h) (+ a b c d e h)))
                      (pushvalue (/ (+ b c d h) (+ a b c d h)))
                      (pushvalue (/ (+ b c h) (+ a b c h)))
                      (pushvalue (/ (+ b h) (+ a b h)))
                      (pushvalue (/ (+ h) (+ a h)))
                      (pushvalue (/ (+ b c d e) (+ a b c d e)))
                      (pushvalue (/ (+ b c d) (+ a b c d)))
                      (pushvalue (/ (+ b c) (+ a b c)))
                      (pushvalue (/ (+ b) (+ a b)))
                      (pushvalue (/ (+) (+ a)))
                      (let* ((sorted (sort values #'<))
                             (min most-positive-fixnum))
                        (mapl #'(lambda (x)
                                  (when (second x)
                                    (let ((diff (- (second x) (first x))))
                                      (when (< diff min) (setq min diff)))))
                        (when (> min bestmin) (setq bestmin min)
                          (format t "~a (~a ~a ~a ~a ~a ~a ~a ~a)~%"
                                  min a b c d e f g h))))))))))))))

Because this program ran substantially slower than the version for 16 switches I made the code to check each set of candidate values a bit more efficient, but I'm sure it could be improved further.

The best output was:

24 (270 47 47 82 100 330 33 27)

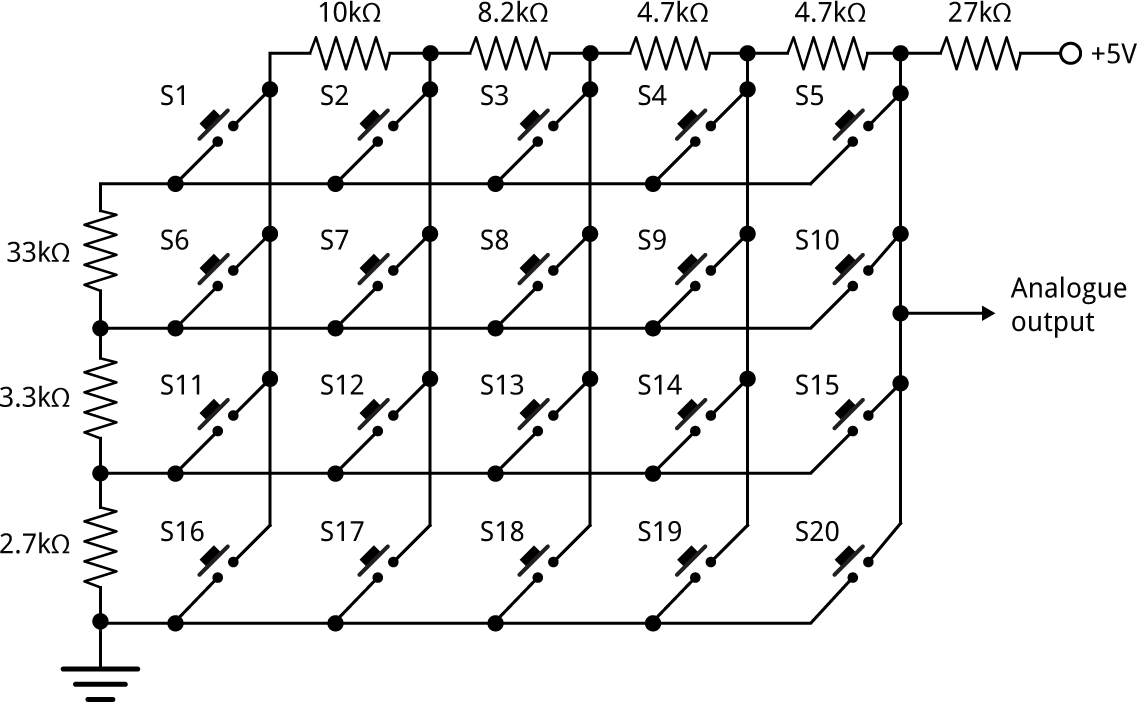

Since you can multiply these values by an arbitrary factor I chose the values a = 27kΩ, b = 4.7kΩ, c = 4.7kΩ, d = 8.2kΩ, e = 10kΩ, f = 33kΩ, g = 3.3kΩ, and h = 2.7kΩ. Here's the final circuit:



If you're curious about why I wanted this, here's the application: Tiny Machine-Code Monitor.
